Fly Ash Bricks Making Machines



Fly Ash Brick Making Hydraulic Press

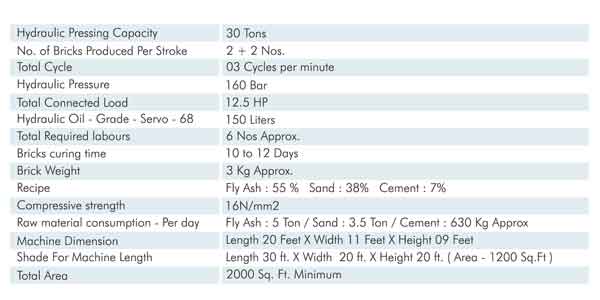

Model - AHP 350 Bricks per hour

Features

  • Pressing Capacity : 350 Bricks per hour (L-9'*W-4'*H-3")
  • Pressing Capacity : 30Tons
  • Total Cycles: 3 Cycles per minute
  • Operation / Control : Manual
  • Total Electric Power: 12.5 HP Motor
  • Pan Mixer : 250Kg Capacity
  • Hydraulic Oil : 150 Liters

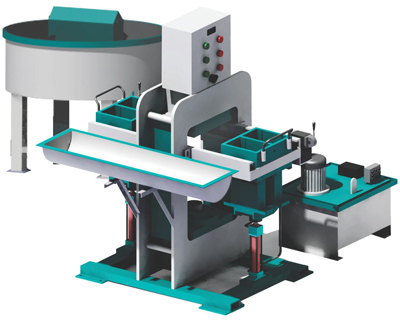

Semi Automatic Machines

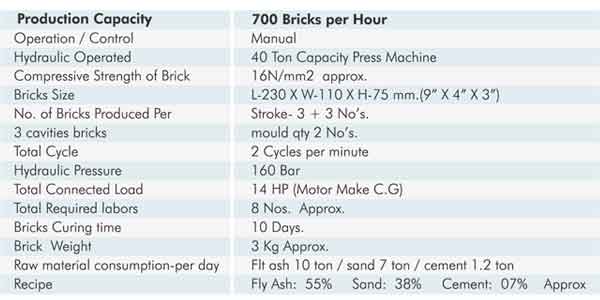

Model - AHP 700 Bricks per hour


Features

  • Production Capacity :700 Bricks per hour
  • Pressing Capacity : 40 Tons
  • Total Cycles : 2 to 3 Cycles per minute
  • Operation / Control : Manual
  • Total Electric Power : 14 HP Motor
  • Pan Mixer : 250Kg Capacity
  • Hydraulic oil : 150liters

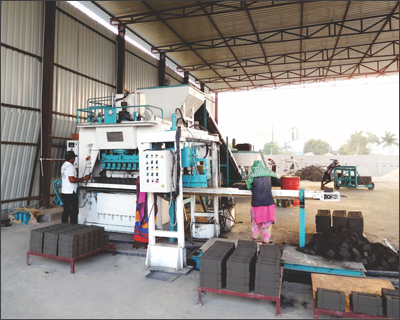

Fly Ash Brick Making Hydraulic Press

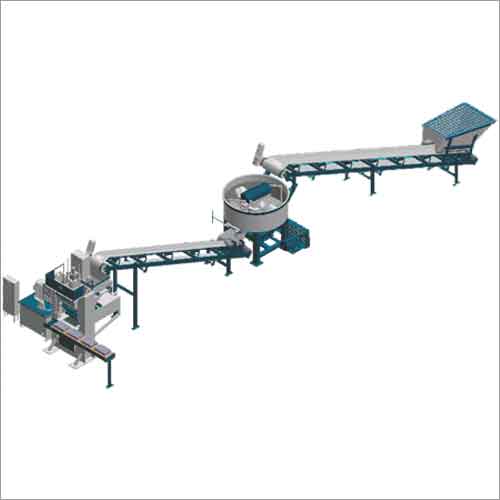

Model - AHP 1000 Bricks per hour


Features

  • 50Tons Hydraulic Pressing Capacity and push out on Pallet
  • Operation / Control : Fully Automatic PLC Base.
  • Machine Efficiency 85% of mentioned capacity.
  • Pan Mixer : 400Kgs. Material Mixing Capacity
  • Rubber Belt Conveyor - 18 Feet Length



Technical Specification 1000 Bricks per Hour (L-230 x W-100 x H-75mm)
Production Capacity 50 Tons.
Hydraulic Pressing Capacity 3 Nos.
No. of Bricks Produced Per Stroke Total Cycle 06 Cycles per minute 160 Bar
Hydraulic Pressure Total Connected Load 23.5 HP
Hyd raulic Oil - Grade - Servo - 68 300 Liters
Total Required labors 8 to 10 Nos Approx.
Wooden Pallet {Material - Hard Board) Length 450 mm x width 300mm x Thickness - 10mm / Qty - 2500Nos.
Pallet stand - Size 1000 mm x 1000mm x 150, Qty. l 00Nos.
Bricks curing time 10 to 12 Days. 3Kg Approx.
Brick Weight Recipe Fly Ash: 55% Sand: 38% Cement: 7% Approx
Compressive strength l 6N/mm2
Raw material consumption - Per day Machine Dimension Fly Ash : 10 Ton/ Sand: 7 Ton/ Cement: 1 .3 Ton Approx
Shade For Machine Length Length 48 Feet X Width 1 1 Feet X Height 09 Feet
Total Area 1 0000 Sq. Ft. minimum



Interlocking Paver Block and Fly Ash Brick Making Hydraulic Press Machines

Model - AHP 1500 Bricks with Paver Block

Features :


  • 80 Tons Hydraulic Pressing Capacity and Auto push out on Pallet
  • Operation / Control : Fully Automatic PLC Base.
  • Machine Efficiency 85 % of mentioned capacity.
  • Pan Mi xer : 500kgs.. Material Mi xing Capacity
  • Rubber Belt Con veyor - 1 8 Feet Length
  • Pre-feed Con veyor to feed 500kg Raw Material into Pan Mixer Molds interchangeability
  • Color Mixer - l00kg Material mixing capacity
Technical Specification
Production Capacity 1500 Bricks/hr. with Paver Block
Hydraulic Pressing Capacity 80 Tons.
Hydraulic Pressure 180 Bar
No. of Paver / Bricks Produced Per Stroke Paver - 02 Nos. / Bricks - 04 Nos.
Total Cycle 06 Cycles per minute
Total Connected Load 27 HP
Hydraulic Oil - Grade - Serva - 68 300 Liters
Total Required labors l0 Nos Approx.
Wooden Pallet (Material - Hard Board) Length 550 mm x width 300mm x Thickness - l 0mm / Qty - 2500Nos.
Pallet stand - Size l000 mm x l000mm x 150, Qty. l00Nos.
Paver Block and Bricks curing time 8 to l0 Days.
Machine Dimension Length 48 Feet X Width 20 Feet X Height 09 Feet
Shade For Machine Length 60ft x Width-30ft x Height-20ft (Area- 1800 Sq. ft.)
Total Area l0000 Sq. Ft. minimum



Interlocking Paver Block and Fly Ash Brick Making Hydraulic Press

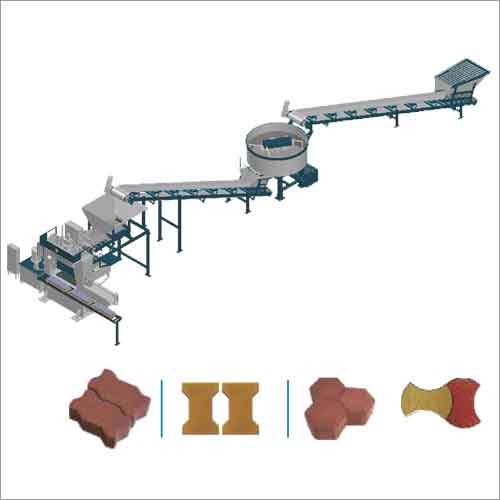

Model - AHP 2500 Bricks with Paver Block

Features :


  • 105 Tons Hydraulic Pressing Capacity and Auto push out on Pallet.
  • Operation / Control : Fully Automatic PLC Base.
  • Machine Efficiency 85% of mentioned capacity.
  • Pan Mixer : 800kgs Material Mixing capacity.
  • Rubber Belt Conveyour - 28 Feet Length
  • Box Feeder 1000kg capacity.
  • Pre-feed Conveyor 24feet to feed 800kg Raw Material into Pan Mixer
  • Hydraulic Trolley - Qty 2Nos.
  • Molds interchangebility
  • Color Mixer - 100kg Material mixing Capacity.

Technical Specification
Production Capacity 2500 Bricks/hr. with Paver Block
Hydraulic Pressing Capacity l05 Tons.
Hydraulic Pressure 180 Bar
No. of Paver / Bricks Produced Per Stroke Paver - 03 Nos. / Bricks - 07 Nos.
Total Cycle 06 Cycles per minute
Total Connected Load 50 HP
Hydraulic Oil - Grade - Serva - 68 400 Liters
Total Required labors 10 to 12 Nos Approx.
Wooden Pallet (Material - Hard Board) Length 950 mm x width 300mm x Thickness - 15mm / Qty - 2500Nos.
Pallet stand - Size l000 mm x 800mm x 150mm - Qty. l 70Nos.
Paver Block and Bricks curing time 8 to l0 Days.
Machine Dimension Length 75 ft x Width 20 ft x Height 15 ft.
Shade For Machine Length 80ft x Width-50ft x Height-20ft (Area- 4000 Sq. ft.)
Total Area 20000 Sq. Feet minimum.



Fly Ash Brick Making Hydraulic Press

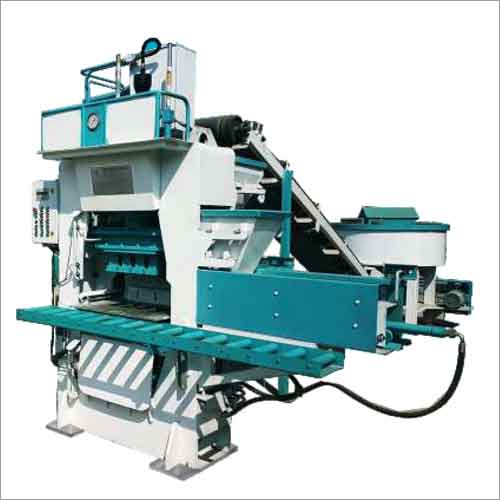

Model - AHP 1500 Bricks per hour

Features :


  • 60 Tons Hydraulic Pressing capacity and Auto push out on Pallet
  • Operation / Control : Fully Automatic PLC Base.
  • Machine Efficiency 85% of mentiones capacity.
  • Pan Mixer :500kg. Material Mixing Capacity
  • Rubber Belt Conveyor - 18 Feet Length


Technical Specification
Production Capacity 2500 Bricks/hr. with Paver Block
Hydraulic Pressing Capacity 60 Tons.
Hydraulic Pressure 160 bar
No. of Paver / Bricks Produced Per Stroke 4 Nos.
Total Cycle 06 Cycles per minute
Total Connected Load 25 HP
Hydraulic Oil - Grade - Serva - 68 300 Liters
Total Required labors 8 to 10 Nos Approx.
Wooden Pallet (Material - Hard Board) Length 550 mm x width 300mm x Thickness - 12mm / Qty - 2500Nos.
Pallet stand - Size l000 mm x 800mm x 150mm - Qty. l 00Nos.
Bricks curing time 10 to 12 Days.
Brick Weight 3kg Approx.
Recipe Fly Ash. 55% Crush sand :38% cement: 7% Approx.
Compressive strength 16N/mm2
Raw material consumption - per day Fly Ash :15 Ton / Crush Sand:10 Ton / Cement: 2 Ton Approx.
Machine Dimension Length 48 ft x Width 11 ft x Height 09 ft.
Shade For Machine Length 60ft x Width-30ft x Height-20ft (Area- 1800 Sq. ft.)
Total Area 10000 Sq. Feet minimum.



Fly Ash Brick Making Hydraulic Press

Model - AHP 2000 Bricks per hour

Features :


  • 75 Tons Hydraulic Pressing capacity and Auto push out on Pallet
  • Operation / Control : Fully Automatic PLC Base.
  • Machine Efficiency 85% of mentiones capacity.
  • Pan Mixer :60kgs. Material Mixing Capacity
  • Rubber Belt Conveyor - 28 Feet Length
  • Box Feeder 900kg capacity


Technical Specification
Production Capacity 2500 Bricks/hr. with Paver Block
Hydraulic Pressing Capacity 75 Tons.
Hydraulic Pressure 160 bar
No. of Paver / Bricks Produced Per Stroke 6 Nos.
Total Cycle 06 Cycles per minute
Total Connected Load 35 HP
Hydraulic Oil - Grade - Serva - 68 400 Liters
Total Required labors 10 to 12 Nos Approx.
Wooden Pallet (Material - Hard Board) Length 800 mm x width 300mm x Thickness - 15mm / Qty - 2500Nos.
Pallet stand - Size 800 mm x 500mm x 150mm - Qty. l 70Nos.
Bricks curing time 10 to 12 Days.
Brick Weight 3kg Approx.
Recipe Fly Ash. 55% Crush sand :38% cement: 7% Approx.
Compressive strength 16N/mm2
Raw material consumption - per day Fly Ash :20 Ton / Crush Sand:15 Ton / Cement: 2.5 Ton Approx.
Machine Dimension Length 60 ft x Width 15 ft x Height 12 ft.
Shade For Machine Length Length- 70 ft x Width-40ft x Height-20ft (Area- 2800 Sq. ft.)
Total Area 15000 Sq. Feet minimum.




Fly Ash Brick Making Hydraulic Press

Model - AHP 2500 Bricks per hour

Features :


  • 75 Tons Hydraulic Pressing capacity and Auto push out on Pallet
  • Operation / Control : Fully Automatic PLC Base.
  • Machine Efficiency 85% of mentiones capacity.
  • Pan Mixer :60kgs. Material Mixing Capacity
  • Rubber Belt Conveyor - 28 Feet Length
  • Box Feeder 900kg capacity


Technical Specification
Production Capacity 2500 Bricks/hr. with Paver Block
Hydraulic Pressing Capacity 105Tons.
No. of Paver / Bricks Produced Per Stroke 160 bar
Total Cycle 8 Nos.
Hydraulic Pressure 06 Cycles per minute
Total Connected Load 52 HP
Hydraulic Oil - Grade - Serva - 68 400 Liters
Total Required labors 15 Nos Approx.
Wooden Pallet (Material - Hard Board) Length 950 mm x width 300mm x Thickness - 15mm / Qty - 2500Nos.
Pallet stand - Size l000 mm x 800mm x 150mm - Qty. l 70Nos.
Bricks curing time 10 to 12 Days.
Brick Weight 3kg Approx.
Recipe Fly Ash. 55% Crush sand :38% cement: 7% Approx.
Compressive strength 16N/mm2
Raw material consumption - per day Fly Ash :25 Ton / Crush Sand:20 Ton / Cement: 3.5 Ton Approx.
Machine Dimension Length 60 ft x Width 15 ft x Height 12 ft.
Shade For Machine Length 80ft x Width-50ft x Height-20ft (Area- 4000 Sq. ft.)
Total Area 20000 Sq. Feet minimum.




Fly Ash Brick Making Hydraulic Press

Model - AHP 3000 Bricks per hour

Features :


  • 105 Tons Hydraulic Pressing capacity and Auto push out on Pallet
  • Operation / Control : Fully Automatic PLC Base.
  • Machine Efficiency 85% of mentiones capacity.
  • Pan Mixer :500kgs. Material Mixing Capacity - Qty. 2Nos
  • Rubber Belt Conveyor - 28 Feet Length
  • Box Feeder 1200kg capacity
  • Pre-feed Conveyor with change over feeder box to feed 500kg raw material into Pan Mixer
  • Hydraulic Trolley - Qty 2 Nos.



Special Feature

Auto pick and place system for bricks
(wooden pallets and labours will be reduce so that effectivenes of the cost will be reduced)

Single color paver block can be produce in this machine


Technical Specification
Production Capacity 2500 Bricks/hr. with Paver Block
Hydraulic Pressing Capacity 105Tons..
Hydraulic Pressure 160 bar
No. of Paver / Bricks Produced Per Stroke 8 Nos..
Total Cycle 06 Cycles per minute
Total Connected Load 52 HP
Hydraulic Oil - Grade - Serva - 68 400 Liters
Total Required labors 15 Nos Approx.
Wooden Pallet (Material - Hard Board) 1000 mm x 1000mm x 150mm - Qty. l 70Nos.
Pallet stand - Size l000 mm x 800mm x 150mm - Qty. l 70Nos.
Bricks curing time 10 to 12 Days.
Brick Weight 3kg Approx.
Recipe Fly Ash. 55% Crush sand :38% cement: 7% Approx.
Compressive strength 16N/mm2
Raw material consumption - per day Fly Ash :35 Ton / Crush Sand:25 Ton / Cement: 4.5 Ton Approx.
Machine Dimension Length 80 ft x Width 20 ft x Height 12 ft.
Shade For Machine Length 100ft x Width-60ft x Height-20ft (Area- 6000 Sq. ft.)
Total Area 40000 Sq. Feet minimum.



Fly Ash Brick Making Hydraulic Press

Model - AHP 3500 Bricks per hour

Features :


  • 120 Tons Hydraulic Pressing capacity and Auto push out on Pallet
  • Operation / Control : Fully Automatic PLC Base.
  • Machine Efficiency 85% of mentiones capacity.
  • Pan Mixer :500kgs. Material Mixing Capacity - Qty. 2Nos
  • Rubber Belt Conveyor - 28 Feet Length
  • Box Feeder 1500kg capacity
  • Pre-feed Conveyor with change over feeder box to feed 800kg raw material into Pan Mixer
  • Hydraulic Trolley - Qty 3 Nos.


Special Feature

Auto pick and place system for bricks
(wooden pallets and labours will be reduce so that effectivenes of the cost will be reduced)
Single color paver block can be produce in this machine


Technical Specification
Production Capacity 3500 Bricks/hr. with Paver Block
Hydraulic Pressing Capacity 120Tons.
Hydraulic Pressure 160 bar
No. of Paver / Bricks Produced Per Stroke 10 Nos..
Total Cycle 06 Cycles per minute
Total Connected Load 65 HP
Hydraulic Oil - Grade - Serva - 68 400 Liters
Total Required labors 15 Nos Approx.
Wooden Pallet (Material - Hard Board) 1000 mm x 1000mm - Qty. l 70Nos.
Pallet stand - Size l000 mm x 800mm x 150mm - Qty. l 70Nos.
Bricks curing time 10 to 12 Days.
Brick Weight 3kg Approx.
Recipe Fly Ash. 55% Crush sand :38% cement: 7% Approx.
Compressive strength 16N/mm2
Raw material consumption - per day Fly Ash :45 Ton / Crush Sand:30 Ton / Cement: 5.5 Ton Approx.
Machine Dimension Length 80 ft x Width 20 ft x Height 12 ft.
Shade For Machine Length 100ft x Width-60ft x Height-20ft (Area- 6000 Sq. ft.)
Total Area 40000 Sq. Feet minimum.




Fly Ash Brick Making Hydraulic Press

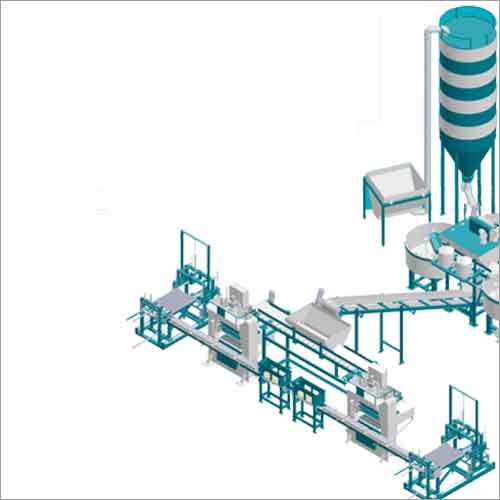

Model - AHP 5000 Bricks Per hour

Features :


  • 105 Tons Hydraulic Pressing capacity and Auto push out on Pallet -(machines - Qty. 2nos.)
  • Operation / Control : Fully Automatic PLC Base.
  • Machine Efficiency 85% of mentiones capacity.
  • Pan Mixer :800 kgs. Material Mixing Capacity - Qty. 2Nos
  • Rubber Belt Conveyor - 28 Feet Length
  • Box Feeder with change over conveyor - 1500kg capacity
  • Pre-feed Conveyor with change over feeder box to feed 800kg raw material into Pan Mixer
  • 2 Bean Batching Plant
  • Carnet silo, Fly ash silo and Hydraulic Trolley (Qty. 4nos)
Special Feature

Auto pick and place system for bricks
(wooden pallets and labours will be reduce so that effectivenes of the cost will be reduced)

Single color paver block can be produce in this machine

Technical Specification
Production Capacity 5000 Bricks per Hour (L-230 x W-100 x H-75 mm)
Hydraulic Pressing Capacity 105 Tons each machines
Hydraulic Pressure 180 bar
No. of Paver / Bricks Produced Per Stroke 08 Nos. each machines
Total Cycle 06 Cycles per minute for each machines
Total Connected Load 90 HP
Hydraulic Oil - Grade - Serva - 68 1000 Liters
Total Required labors 20 Nos Approx.
Wooden Pallet (Material - Hard Board) 1000 mm x 1000mm - Qty. l 70Nos.
Pallet stand - Size l000 mm x 800mm x 150mm - Qty. l 70Nos.

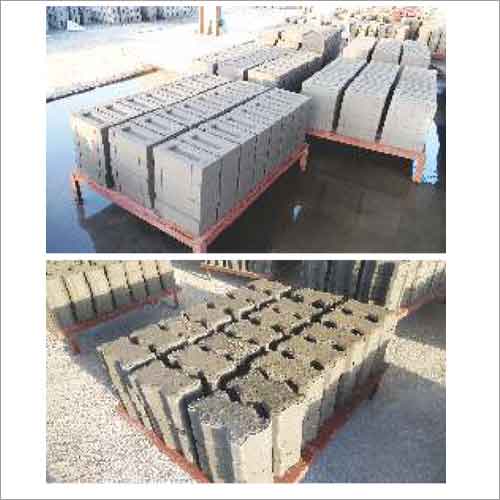

Bricks curing time 10 to 12 Days.
Brick Weight 3kg Approx.
Recipe Fly Ash. 55% Crush sand :38% cement: 7% Approx.
Compressive strength 16N/mm2
Raw material consumption - per day Fly Ash :45 Ton / Crush Sand:30 Ton / Cement: 5.5 Ton Approx.
Machine Dimension Length 80 ft x Width 20 ft x Height 12 ft.
Shade For Machine Length 100ft x Width-60ft x Height-20ft (Area- 6000 Sq. ft.)
Total Area 40000 Sq. Feet minimum.

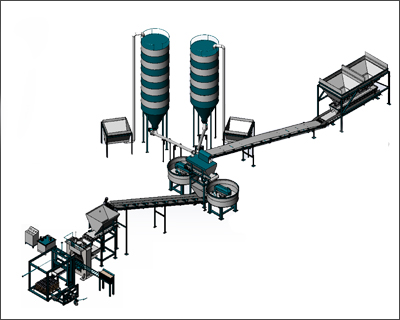

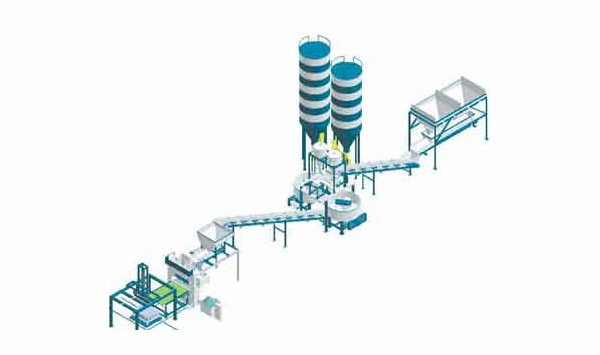

Fully Automatic FLy ASh Brick Making Plant Up to 1,00,000 Bricks

Model - AHP 5000 Bricks Per hour

Features :


  • Plant Capacity : 30,000 Bricks to 1,00,000 Bricks/per day
  • Batching Plant with silo's

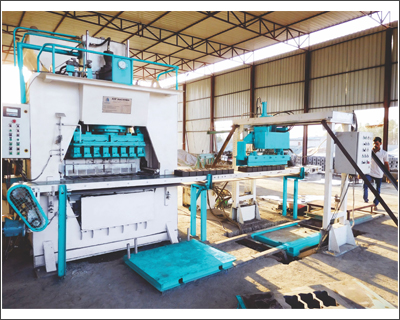

  1. Hydraulic Press
  2. Control Panels
  3. Stacker
  4. Feeder Box
  5. Conveyor
  6. Pan Mixer
  7. Box Hopper
  8. Pre-feed Conveyor
  9. Batching Plant
  10. Silo for Cement
  11. Silo for Fly Ash
