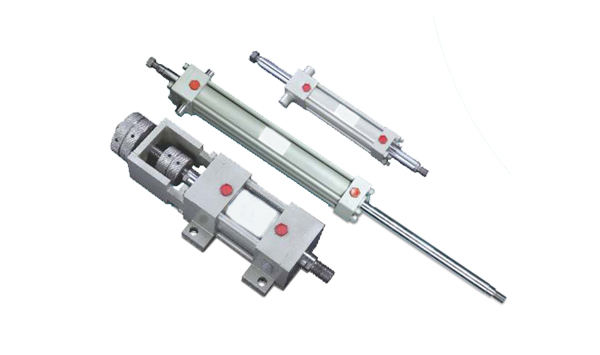

Double-Ended Hydraulic Cylinders-003

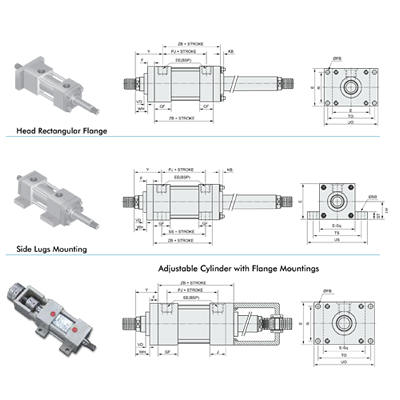

Various types of mountings

  • Flange Mountings
  • Foot Mountings
  • Trunnion Mountings
  • Tie Rod Extended Mountings
• Also available in adjustable stroke with cushioning
• Double-ended cylinder with female threading at both ends of rods
• Double-ended cylinder with hollow piston rod
• Tandem type double-ended cylinder also available as per requirement

Bore Rod Add Stroke Add 2 X Stroke Bore Rod Add Stroke Add 2 X Stroke
Ø No. mm Ø ZB PJ SS ZJ Ø No. mm Ø ZB PJ SS ZJ
25 1 12 104 53 88 154   100 1 45   151   101   107   265
2 18 2 56
32 1 16 108 56 88 178
3 70
2 22
40 1 20 125 73 105 195   125 1 56   175   117   131   289
2 25 2 70
  50 1 25   125   74   99   207 3 90
2 28
  158 1 70   188   130   130   302
3 35
  63 1 28   127   80   93   223 2 90
2 35 3 110
3 45   200 1 110   242   160   172   356
  80 1 35   144   93   110   246
2 130
2 45
3 56 3 140
