Types of Mounting :

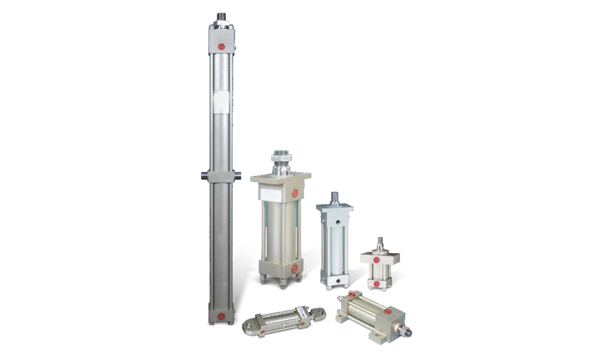

Double Acting Hydraulic Cylinders
Specification :
- Max. pressure : 160 bar
- Max. reciprocating speed : 12m/min
- Breakaway pressure : 3 to 5 bar
- Standard cushioning length : 20mm
- Single and Double rod design
- Temperature Range: 20C to 150C depending on seal type
- Seal types to suit a wide variety of operating environment
- Cushion available at either end
| Bore | Rod Ø | A | B | D | E | EE | GF | J | KK | NA | PJ | TG | WH | Y | ZJ | VD | ZB | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 12 | 14 | 24 | 10 | 40 | 1/4" | 35.0 | 22 | M 10 x 1.25 | 11 | 56.0 | 30 | 15.0 | 48.0 | 115.0 | 5.0 | 121.0 | ||||||
| 32 | 18 | 20 | 16 | 20 | 28 | 32 | 14 | 17 | 50 | 1/4" | 40.0 | 25 | M12X1.25 | M16X1.5P | 17 | 19 | 69.0 | 36 | 25.0 | 63.0 | 145.0 | 6.0 | 170.0 |
| 40 | 18 | 25 | 18 | 28 | 30 | 40 | 15 | 21 | 63 | 1/4" | 48.3 | 30 | M14X1.5 | M20X1.5P | 17 | 24 | 88.0 | 44 | 23.6 | 67.9 | 171.9 | 9.6 | 185.9 |
| 50 | 22 | 25 | 22 | 28 | 34 | 40 | 18 | 21 | 75 | 3/8" | 45.6 | 30 | M16X1.5 | M20X1.5P | 21 | 24 | 96.0 | 54 | 23.6 | 66.2 | 176.2 | 9.6 | 193.6 |
| 63 | 28 | 35 | 28 | 36 | 42 | 55 | 22 | 30 | 90 | 3/8" | 49.0 | 32 | M20X1.5 | M27X2P | 26 | 33 | 97.4 | 64 | 21.6 | 66.4 | 179.6 | 9.6 | 199.6 |
| 80 | 36 | 45 | 36 | 45 | 50 | 60 | 30 | 39 | 115 | 1/2" | 58.0 | 38 | M27X2P | M39X2P | 34 | 42 | 101.0 | 83 | 20.6 | 75.6 | 196.6 | 5.6 | 216.6 |
| 100 | 45 | 70 | 45 | 63 | 60 | 88 | 39 | 64 | 130 | 3/4" | 77.0 | 50 | M33X2P | M56X2P | 43 | 67 | 115.0 | 97 | 32.2 | 104.2 | 244.2 | 3.2 | 269.2 |
| 125 | 56 | 90 | 56 | 85 | 72 | 108 | 46 | 84 | 165 | 3/4" | 77.3 | 50 | M42X2P | M76X2P | 54 | 87 | 130.0 | 126 | 30.7 | 113.0 | 268.0 | 5.2 | 298.0 |
| 150 | 70 | 110 | 63 | 95 | 88 | 130 | 64 | 103 | 190 | 1" | 80.5 | 51 | M56X2P | M95X2P | 68 | 107 | 131.0 | 146 | 25.0 | 109.5 | 266.5 | 5.2 | 296.5 |
| 200 | 90 | 130 | 85 | 112 | 108 | 155 | 84 | 123 | 245 | 1-1/4" | 90.0 | 60 | M64X3P | M120X2P | 88 | 127 | 142.0 | 190 | 39.0 | 133.0 | 309.0 | 14.6 | 320.0 |
Flange and Side Lugs Mountings
Dimensions:
| Bore | E | EE | F | FB | GF | J | LH | R | SB | ST | TO | TS | UO | US | XS | Y | + Stroke | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PJ | SS | ZJ | ZE | |||||||||||||||||
| 25 | 40 | 1/4" | 8 | 5.5 | 35.0 | 22 | 20.0 | 27 | 6.6 | 8.5 | 51 | 54 | 65 | 72 | 33.0 | 48.0 | 56 | 73.0 | 115.0 | 123.0 |
| 32 | 50 | 1/4" | 10 | 9.0 | 40.0 | 25 | 25.0 | 30 | 10 | 10 | 70 | 70 | 90 | 90 | 48.0 | 63.0 | 69 | 84.5 | 145.0 | 155.0 |
| 40 | 63 | 1/4" | 10 | 11.0 | 48.5 | 30 | 31.5 | 41 | 11 | 13 | 87 | 85 | 115 | 105 | 56.0 | 67.9 | 88 | 98.0 | 171.9 | 181.9 |
| 50 | 75 | 3/8" | 12 | 13.5 | 45.6 | 30 | 37.5 | 52 | 14 | 19 | 105 | 102 | 142 | 127 | 56.0 | 66.2 | 96 | 100.0 | 176.2 | 188.7 |
| 63 | 90 | 3/8" | 12 | 13.5 | 49.0 | 35 | 45.0 | 65 | 18 | 26 | 117 | 124 | 160 | 161 | 58.0 | 66.4 | 97 | 104.5 | 179.6 | 191.6 |
| 80 | 115 | 1/2" | 15 | 17.5 | 58.0 | 35 | 57.5 | 83 | 18 | 26 | 149 | 149 | 190 | 186 | 64.6 | 75.6 | 101 | 111.5 | 196.6 | 211.6 |
| 100 | 130 | 3/4" | 20 | 17.5 | 77.0 | 50 | 65.0 | 97 | 21 | 32 | 162 | 172 | 220 | 216 | 91.0 | 104.2 | 115 | 128.5 | 244.2 | 264.2 |
| 125 | 165 | 3/4" | 30 | 22.0 | 77.3 | 50 | 82.5 | 126 | 26 | 32 | 208 | 210 | 260 | 254 | 89.0 | 113.0 | 130 | 148.5 | 268.0 | 298.0 |
| 150 | 190 | 1" | 30 | 26.0 | 80.5 | 51 | 102.5 | 155 | 33 | 38 | 253 | 260 | 320 | 318 | 96.0 | 109.5 | 131 | 147.5 | 266.5 | 296.5 |
| 200 | 245 | 1-1/4" | 30 | 33.0 | 90.0 | 60 | 122.5 | 190 | 39 | 44 | 300 | 311 | 380 | 381 | 116.0 | 133.0 | 142 | 167.0 | 309.0 | 339.0 |
Standard Trunnion Mountings
| Bore | E | EE | F | TD | GF | J | XV | TM | UM | UW | WH | VD | XG | KB | BD | Y | TC | UT | + Stroke | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PJ | XJ | ZJ | |||||||||||||||||||
| 25 | 40 | 1/4" | 08 | 12 | 35.0 | 22 |  |
48 | 68 | 45 | 15.0 | 5.0 | 44.0 | 7 | 20 | 48.0 | 40 | 58 | 56.0 | 101.0 | 115.0 |
| 32 | 50 | 1/4" | 10 | 16 | 40.0 | 25 | 55 | 79 | 54 | 25.0 | 6.0 | 54.0 | 8 | 25 | 63.0 | 44 | 68 | 69.0 | 133.0 | 145.0 | |
| 40 | 63 | 1/4" | 10 | 25 | 48.3 | 30 | 76 | 126 | 92 | 23.6 | 9.6 | 56.0 | 10 | 30 | 67.9 | 63 | 113 | 88.0 | 156.9 | 179.9 | |
| 50 | 75 | 3/8" | 12 | 25 | 45.6 | 30 | 89 | 139 | 112 | 23.6 | 9.6 | 56.0 | 15 | 30 | 66.2 | 75 | 125 | 96.0 | 161.2 | 176.2 | |
| 63 | 90 | 3/8" | 12 | 30 | 49.0 | 32 | 100 | 160 | 126 | 21.6 | 9.6 | 58.0 | 15 | 40 | 66.4 | 90 | 150 | 97.4 | 163.6 | 179.6 | |
| 80 | 115 | 1/2" | 15 | 35 | 58.0 | 38 | 127 | 197 | 260 | 20.6 | 5.6 | 64.6 | 18 | 45 | 75.6 | 115 | 185 | 101.0 | 177.6 | 196.6 | |
| 100 | 130 | 3/4" | 20 | 40 | 77.0 | 50 | 140 | 220 | 180 | 32.2 | 3.2 | 91.0 | 18 | 50 | 104.2 | 130 | 210 | 115.0 | 219.0 | 244.2 | |
| 125 | 165 | 3/4" | 30 | 42 | 77.3 | 50 | 178 | 262 | 215 | 30.7 | 5.2 | 91.0 | 22 | 52 | 113.0 | 165 | 249 | 130.0 | 243.0 | 268.0 | |
| 150 | 190 | 1" | 30 | 48 | 80.5 | 51 | 200 | 311 | 260 | 25.0 | 5.2 | 96.0 | 24 | 58 | 109.5 | 190 | 301 | 131.0 | 241.0 | 260.5 | |
| 200 | 245 | 1-1/4" | 30 | 54 | 90.0 | 60 | 279 | 387 | 355 | 39.0 | 14.6 | 116.0 | 28 | 64 | 133.0 | 245 | 353 | 142.0 | 279.0 | 309.0 | |
Extended Tie Rod Mountings
| Bore | E | EE | F | BB | GF | J | TG | DD | AA | WH | VD | KB | Y | + Stroke | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PJ | ZJ | ||||||||||||||
| 25 | 40 | 1/4" | 08 | 19 | 35.0 | 22 | 30 | M6 | 40.0 | 15.0 | 5.0 | 7.0 | 48.0 | 56.0 | 115.0 |
| 32 | 50 | 1/4" | 10 | 24 | 40.0 | 25 | 36 | M6 | 47.0 | 25.0 | 6.0 | 8.0 | 63.0 | 69.0 | 145.0 |
| 40 | 63 | 1/4" | 10 | 35 | 48.3 | 30 | 44 | M10 | 59.3 | 23.6 | 9.6 | 12.0 | 67.9 | 88.0 | 171.9 |
| 50 | 75 | 3/8" | 12 | 46 | 45.6 | 30 | 54 | M12 | 73.5 | 23.6 | 9.6 | 15.0 | 66.2 | 96.0 | 176.2 |
| 63 | 90 | 3/8" | 12 | 46 | 49.0 | 32 | 64 | M12 | 90.5 | 21.6 | 9.6 | 15.0 | 66.4 | 97.4 | 179.6 |
| 80 | 115 | 1/2" | 15 | 59 | 58.0 | 38 | 83 | M16 | 117.3 | 20.6 | 5.6 | 18.0 | 75.6 | 101.0 | 196.6 |
| 100 | 130 | 3/4" | 20 | 59 | 77.0 | 50 | 97 | M16 | 137.1 | 32.2 | 3.2 | 18.0 | 104.2 | 115.0 | 244.2 |
| 125 | 165 | 3/4" | 30 | 81 | 77.3 | 50 | 126 | M20 | 178.1 | 30.7 | 5.2 | 20.0 | 113.0 | 130.0 | 268.0 |
| 150 | 190 | 1" | 30 | 92 | 80.5 | 50 | 146 | M24 | 219.2 | 25.0 | 5.2 | 24.0 | 109.5 | 131.0 | 266.5 |
| 200 | 245 | 1-1/4" | 30 | 115 | 90.0 | 60 | 190 | M30 | 268.7 | 39.0 | 14.6 | 28.0 | 133.0 | 142.0 | 309.0 |
Pivot Mountings
| Bore | E | EE | F | CB | GF | J | CD | EP | CW | CX | EW | VD | L | MR | WH | Y | LT | MS | + Stroke | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PJ | XO | XC | |||||||||||||||||||
| 25 | 40 | 1/4" | 8 | 12 | 35.0 | 22 | 10 | 8 | 6.0 | 12 | 12 | 5.0 | 13 | 12 | 15.0 | 48.0 | 16 | 15 | 56.0 | 131.0 | 128.0 |
| 32 | 50 | 1/4" | 10 | 16 | 40.0 | 25 | 12 | 11 | 8.0 | 16 | 16 | 6.0 | 19 | 15 | 25.0 | 63.0 | 20 | 20 | 69.0 | 165.0 | 164.0 |
| 40 | 63 | 1/4" | 10 | 20 | 48.3 | 30 | 14 | 13 | 10 | 20 | 20 | 9.6 | 19 | 17 | 23.6 | 67.9 | 25 | 29 | 88.0 | 196.9 | 190.9 |
| 50 | 75 | 3/8" | 10 | 30 | 45.6 | 30 | 20 | 17 | 15 | 25 | 30 | 9.6 | 32 | 29 | 23.6 | 66.2 | 31 | 30 | 96.0 | 207.2 | 208.2 |
| 63 | 90 | 3/8" | 12 | 30 | 49.0 | 32 | 20 | 19 | 15 | 30 | 30 | 9.6 | 32 | 29 | 21.6 | 66.4 | 38 | 40 | 97.4 | 217.6 | 211.6 |
| 80 | 115 | 1/2" | 15 | 40 | 58.0 | 38 | 28 | 23 | 20 | 40 | 40 | 5.6 | 39 | 34 | 20.6 | 75.6 | 48 | 50 | 101.0 | 244.6 | 235.6 |
| 100 | 130 | 3/4" | 20 | 50 | 77.0 | 50 | 36 | 30 | 25 | 50 | 50 | 3.2 | 54 | 50 | 32.2 | 104.2 | 58 | 60 | 115.0 | 302.2 | 298.2 |
| 125 | 165 | 3/4" | 30 | 60 | 77.3 | 50 | 45 | 38 | 30 | 60 | 60 | 5.2 | 57 | 53 | 30.7 | 113.0 | 72 | 70 | 130.0 | 340.0 | 325.0 |
| 150 | 190 | 1" | 30 | 80 | 80.5 | 51 | 70 | 47 | 40 | 80 | 70 | 5.2 | 63 | 59 | 25.0 | 109.5 | 92 | 90 | 131.0 | 352.5 | 323.5 |
| 200 | 245 | 1-1/4" | 30 | 80 | 90.0 | 60 | 70 | 57 | 40 | 100 | 80 | 14.6 | 82 | 78 | 39.0 | 133.0 | 116 | 110 | 142.0 | 425.0 | 391.0 |
Head Rectangular & Cap Rectangular Flange Mountings
| Bore | E | EE | F | ø FB | GF | J | R | TO | UO | X | Y | + Stroke | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PJ | ZP | ZJ | ||||||||||||
| 25 | 40 | 1/4" | 8 | 5.5 | 35.0 | 22 | 27 | 51 | 65 | 40.0 | 48.0 | 56.0 | 107.0 | 115.0 |
| 32 | 50 | 1/4" | 10 | 9.0 | 40.0 | 25 | 30 | 70 | 90 | 53.0 | 63.0 | 69.0 | 135.0 | 145.0 |
| 40 | 63 | 1/4" | 10 | 11.0 | 48.3 | 30 | 41 | 87 | 115 | 57.9 | 67.9 | 88.0 | 161.9 | 171.9 |
| 50 | 75 | 3/8" | 12 | 13.5 | 45.6 | 30 | 52 | 105 | 142 | 54.2 | 66.2 | 95.0 | 164.2 | 176.2 |
| 63 | 90 | 3/8" | 12 | 13.5 | 49.0 | 32 | 65 | 117 | 160 | 54.4 | 66.4 | 97.4 | 167.6 | 179.6 |
| 80 | 115 | 1/2" | 15 | 17.5 | 58.0 | 38 | 83 | 149 | 190 | 60.6 | 75.6 | 101.0 | 181.6 | 196.6 |
| 100 | 130 | 3/4" | 20 | 17.5 | 77.0 | 50 | 97 | 162 | 220 | 84.2 | 104.2 | 115.0 | 224.2 | 244.2 |
| 125 | 165 | 3/4" | 30 | 22.0 | 77.3 | 50 | 126 | 208 | 260 | 83.0 | 113.0 | 130.0 | 238.0 | 268.0 |
| 150 | 190 | 1" | 30 | 26.0 | 80.5 | 51 | 155 | 253 | 320 | 79.5 | 109.5 | 131.0 | 230.5 | 260.5 |
| 200 | 245 | 1-1/4" | 30 | 33.0 | 90.0 | 60 | 190 | 300 | 380 | 103.0 | 133.0 | 165.0 | 182.0 | 328.0 |
