HYDRAULIC POWER PACKS
Pressure range up to 400 bar, based on customized applications.

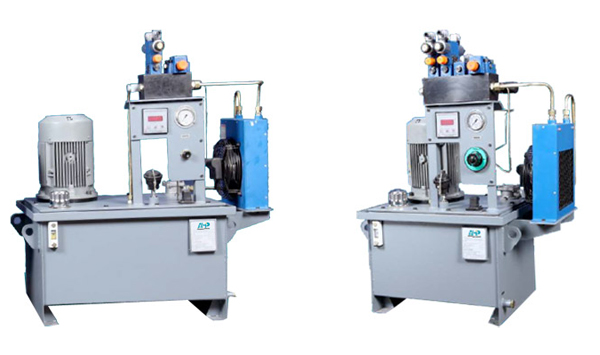

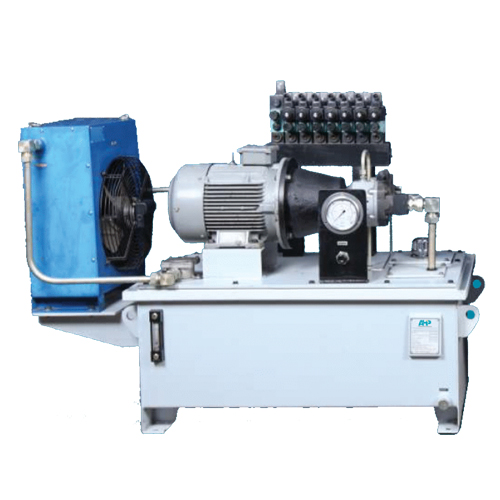

    With air-cooled heat exchanger

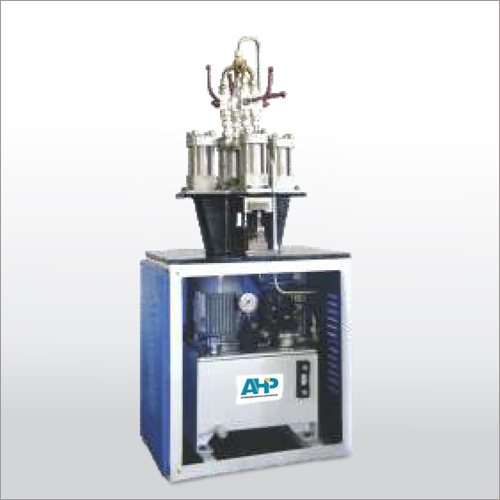

Press applications



With air-cooled heat exchanger

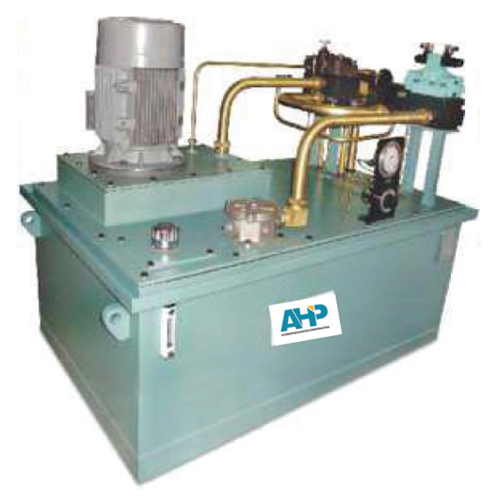

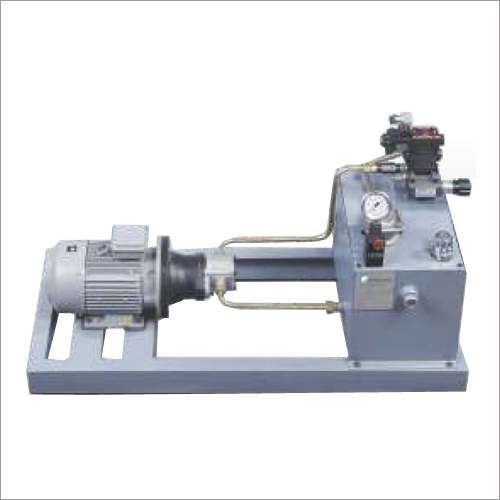

Compact design power pack

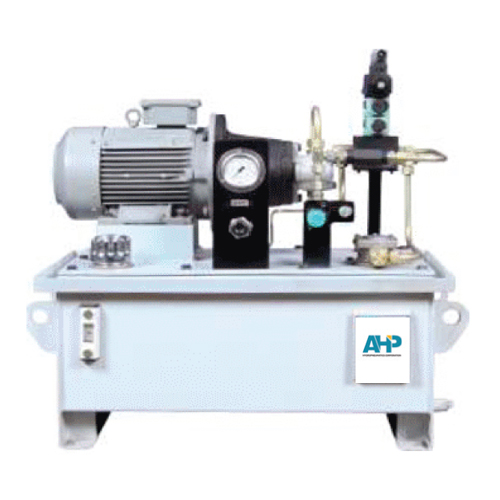

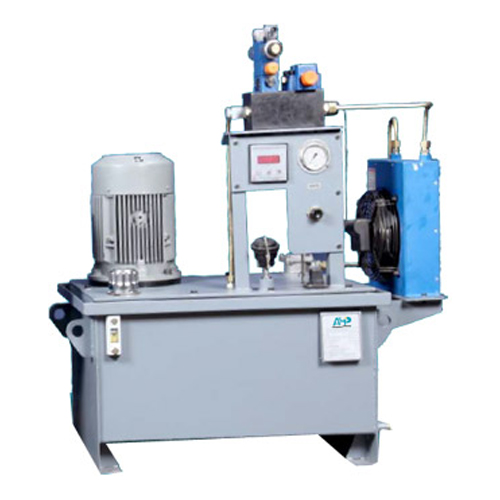

With Yuken components

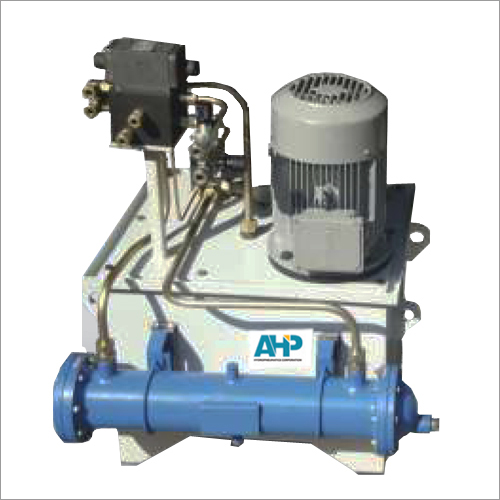

With water-cooled heat exchanger






With Rexroth components



With air-cooled heat exchanger

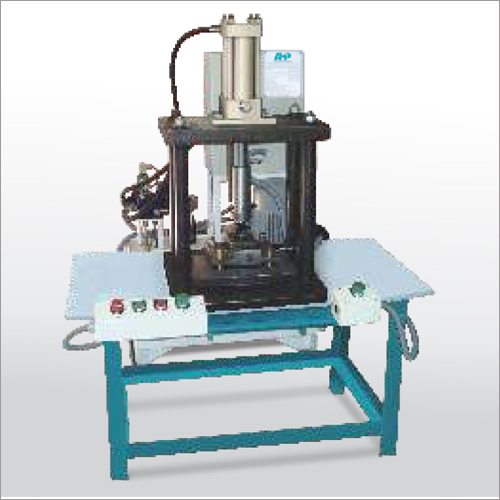

Hydraulic Press

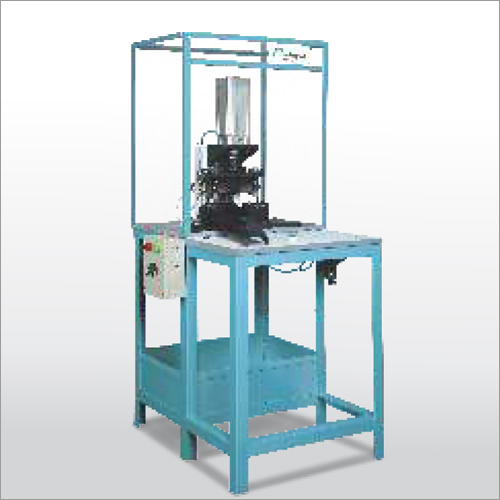

Hydraulic Punching Machine



Pneumatic Cutting Machine



Denomination Applications Symbol

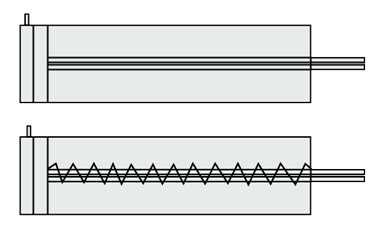

Single acting cylinder The fluid pressure is applied in one sense only (forward stroke)
Back stroke: by undefined force By means of a spring

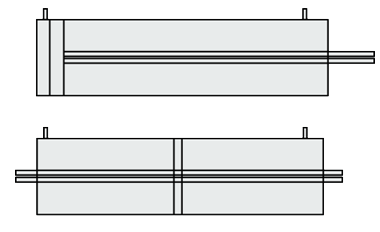

Double acting
cylinder
The fluid pressure is applied
alternatively in two directions
(forward and back stroke)

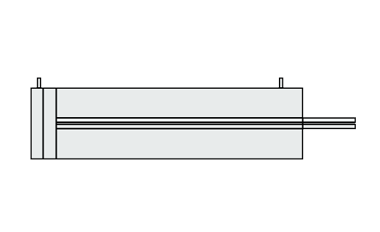

Differential cylinder The ratio between the cylinder section
and the ring section of the piston near the
rod is essential for the cylinder operation
Double rod

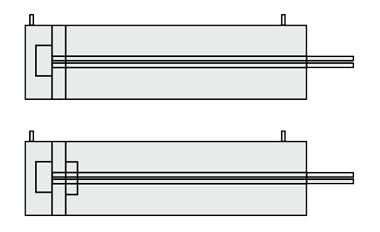

Cylinder with
non-adjustable
cushion
Acting from one side only
Acting from both sides

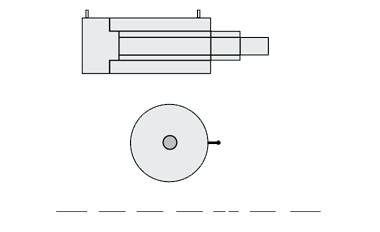

Double acting
telescopic cylinder

Hydraulic
pressure source

Pipes

Cylinder with several pistons which enter into each other with forward and backward movement

Control pipe
(straight line for simplified representations)
