Icon Welded Type Welded Type Cylinders-004
Hydraulic Cylinders

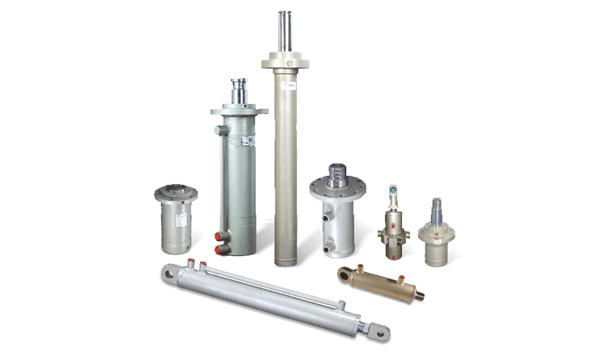

Welded Type Cylinders-004

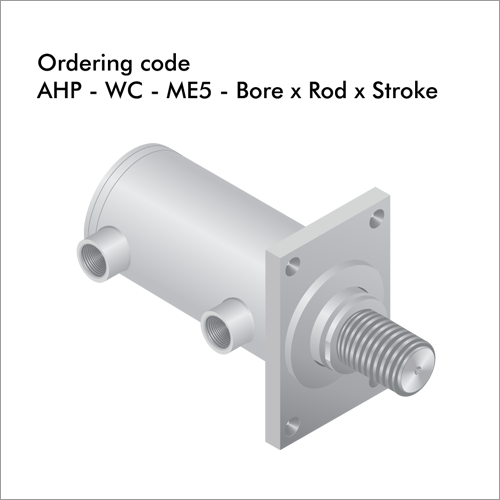

Front Rectangular Flange Mounting - Style ME5

ordering-code-ahp-wc-me5-bore
Hydraulic Cylinder Specifications
Bore ØBmm
Stroke < 1000 ±1mm
Rod Rod Ømm Hardchrome Plated 25µ thk
Mounting Front Rectangular Flange ISO ME5 Mounting
Working pressure 160 bar
Design Mill Duty Double Acting
Max. speed 0.5m/sec.
Test pressure 210 bar
Medium Hydraulic Mineral Oil

front-rectangular-rlange-mounting-style-me5




Rear Female Clevis Mounting - Style MP1



Ordering code
Hydraulic Cylinder Specifications
Bore ØBmm
Stroke < 1000 ±1mm
Rod Rod Ømm Hardchrome Plated 25µ thk
Mounting Rear Female Clevis ISO MP1 Mounting
Working pressure 160 bar
Design Welded/Double Acting
Max. speed 0.2m/sec.
Test pressure 210 bar
Medium Hydraulic Mineral Oil
rear-female-clevis-mounting-style-MP1-fig

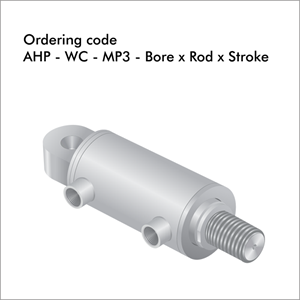

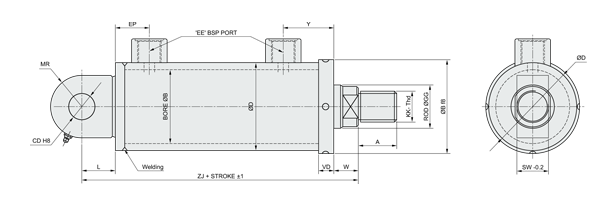

Rear Male Clevis Mounting - Style MP3
ahp-wc-mp3-bore-rod-Stroke
Hydraulic Cylinder Specifications
Bore ØBmm
Stroke < 1000 ±1mm
Rod Rod Ømm Hardchrome Plated 25µ thk
Mounting Side Lugs Mounting MS2
Working pressure 160 bar
Design Mill Duty Double Acting
Max. speed 0.5m/sec.
Test pressure 210 bar
Medium Hydraulic Mineral Oil

rear-male-clevis-mounting-style-mp3-fig

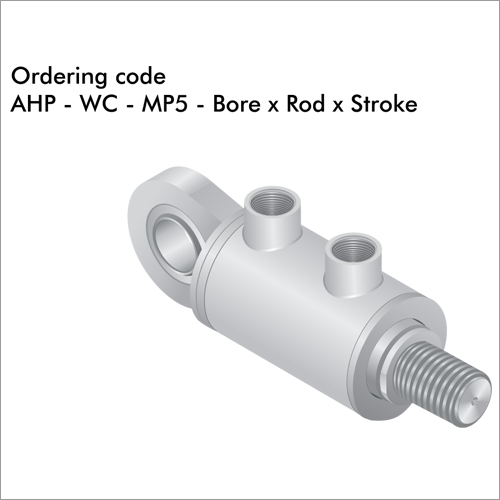

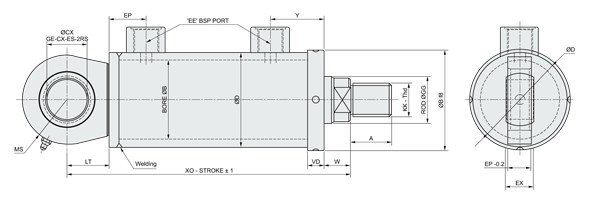

Rear Clevis with Spherical Bearing Mounting - Style MP5
rear-clevis-with-spherical-bearing-mounting-style-mp5
Hydraulic Cylinder Specifications
Bore ØBmm
Stroke < 1000 ±1mm
Rod Rod Ømm Hardchrome Plated 25µ thk
Mounting Rear Clevis with Spherical Bearing
Working pressure 160 bar
Design Welded/Double Acting
Max. speed 0.2m/sec.
Test pressure 210 bar
Medium Hydraulic Mineral Oil

rear-clevis-with-spherical-bearing-mounting-style-mp5-fig

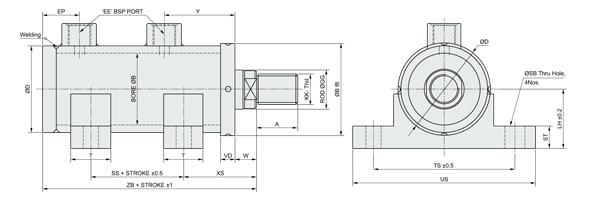

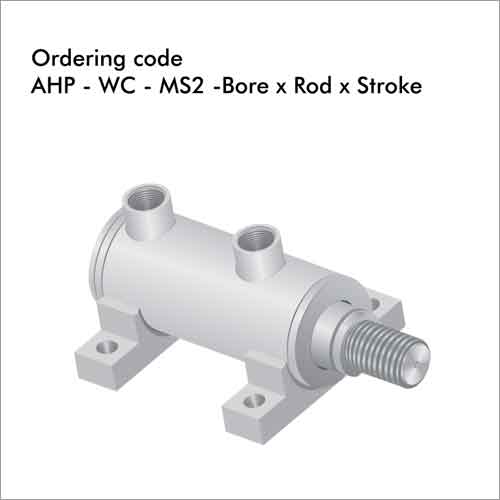

Side Lugs Mounting - Style MS2
side-lugs-mounting-style-ms2
Hydraulic Cylinder Specifications
Bore ØBmm
Stroke < 1000 ±1mm
Rod Rod Ømm Hardchrome Plated 25µ thk
Mounting Side Lugs Mounting as per ISO MS2
Working pressure 160 bar
Design Welded/Double Acting
Max. speed 0.2m/sec.
Test pressure 210 bar
Medium Hydraulic Mineral Oil

side-lugs-mounting-style-ms2-fig

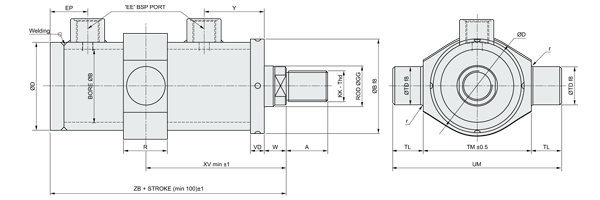

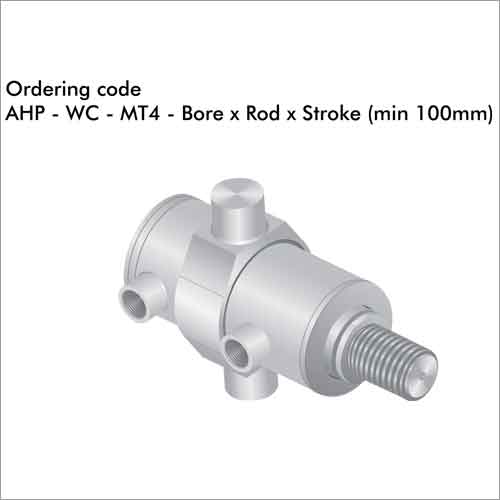

Intermediate Trunnion Mounting - Style MT4
intermediate-trunnion-mounting
Hydraulic Cylinder Specifications
Bore ØBmm
Stroke < 1000 ±1mm
Rod Rod Ømm Hardchrome Plated 25µ thk
Mounting Intermediate Trunnion Mounting
Working pressure 160 bar
Design Welded/Double Acting
Max. speed 0.2m/sec.
Test pressure 210 bar
Medium Hydraulic Mineral Oil


intermediate-trunnion-mounting-style-mt4

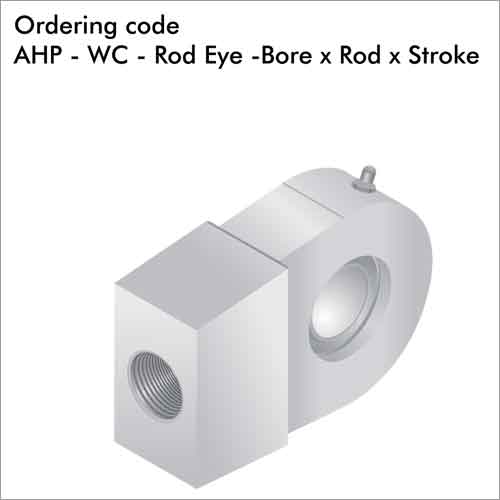

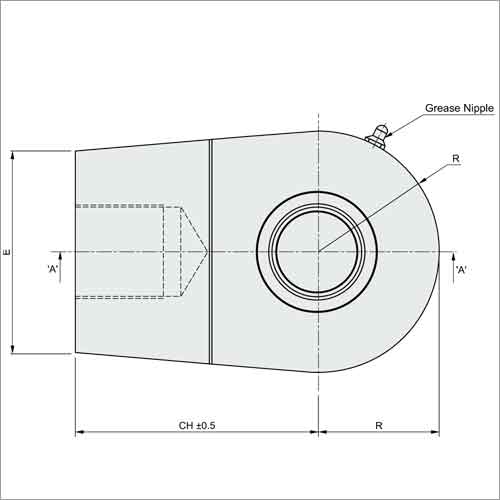

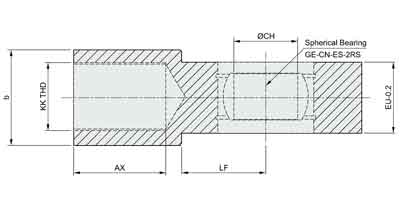

Rod End Eye
rod-end-eye-1 rod-end-eye-2

rod-end-eye-fig

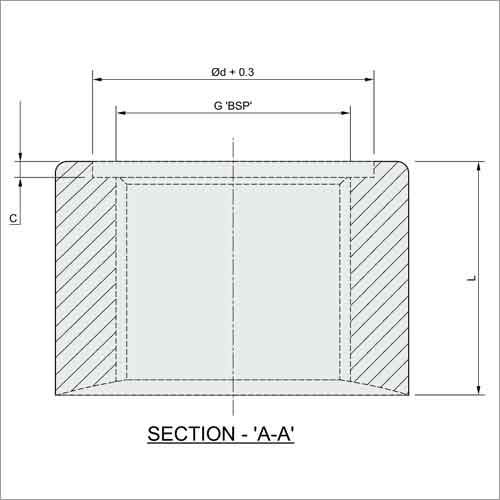

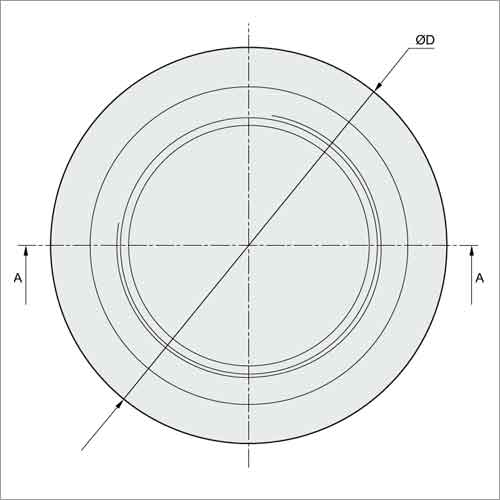

AHP STD Adaptor
ahp-std-adaptor ahp-std-adaptor1
